Real World Renewable Energy Solutions
High Surge Power 100% Imbalanced Load support
Three 240V Programmable
Gen, AC coupling and Configurable Load Breakers Included
Four 120V Sub Panel
Breakers Included
Wide Window MPPT
PV: 70-540V
600V Max.
High Quality Hydro-Magnetic Breakers100% Service Rated
5 In One
Features
MNPower One inverter is our flagship all in one hybrid inverter for off grid, backup power and advanced grid tie use.
Power Capacity
11.4 kW (47.5A) continuous output (with PV) / 10.0 kW (42A) on battery alone
20 kW (84A) 1 second surge at 240 volts, 13 kW (108A) 1 second surge on 120 volt leg.
15 kW max PV array input
Up to 9 units stackable in 240 volts 90kW. 3 units for 208vac three phase 30 kW (more coming soon)
Efficiency: 98% PV-to-AC / 94.5% battery-to-AC / 96.6% CEC weighted
Full power to 6,500ft elevation, derated above
Full power to 45ºC (113ºF), derated above
Physical
IP65/NEMA 3R (outdoor-rated)
-25°C to 60°C operating range
108 lbs (49 kg)
38.3" x 16.5" x 10.7"
Battery Compatibility
40-64VDC (Lithium-ion MidNite or pylontech closed loop, lithium-ion open loop or Lead-acid open loop)
Plug and play with Midnite Power batteries -- no programming or DIP switches or firmware incompatibility.
210A max charge/discharge current / 250A hydraulic-magnetic breaker
Output & Loads
120/240V split-phase or 208V 3-phase (3 units)
100A Grid input/Load output
3 programmable SmartLoad AC outputs (60A, 50A, 30A)
CBI hydraulic-magnetic breakers on all inputs and outputs
Solar Input
3 MPPT trackers (90VDC min - 600VDC max, 30A/22A/22A per MPPT)
15,000W max PV input
AC coupling PV input (50A)
Integrated PV disconnect switch
Grid & Backup
100A grid pass-through / <10ms transfer time
Generator integration (automatic two-wire start)
Safety & Compliance
UL1741SB, UL1741 PCS, IEEE1547, HECO SRD 2.0 certified
Arc fault, ground fault, rapid shutdown included
built in surge suppression
Are All AIOs the Same?
No! While the MidNite Power AIO might appear to be just another AIO, it has many improvements for better performance, better safety, and better functionality.
Engineered for better surge rating and imbalanced load performance, for real world 120 volt surge loads
​
Smartload outputs. Three smart loads allow more energy management of loads that you want to run from solar/backup power sometimes, but not all the time. Dump excess solar into a water heater. Run the EV charger, without danger of draining your solar battery.
Option for dedicated AC coupled input -- allows better control over AC coupled arrays.
CBI hydraulic-magnetic circuit breakers on all inputs/outputs. Easier code compliance, and safer operation.

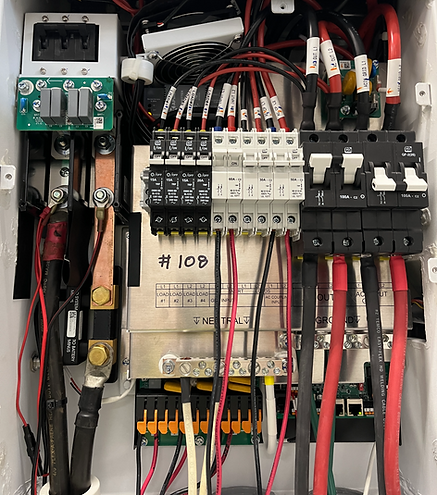

Open the wiring compartment and check it out!
Inside Prospects
-
CBI Hydraulic-magnetic breaker, the​ best in the world
​
-
The total manufacturing cost for adding these breakers and the control boards behind is about $600.00
​
-
Our AIO means 5-in-1 (additional 2: Smart Panel and Sub Panel); Competitor’s AIO means 3-in-1
​
-
Save time for the installer and save money for the customer.

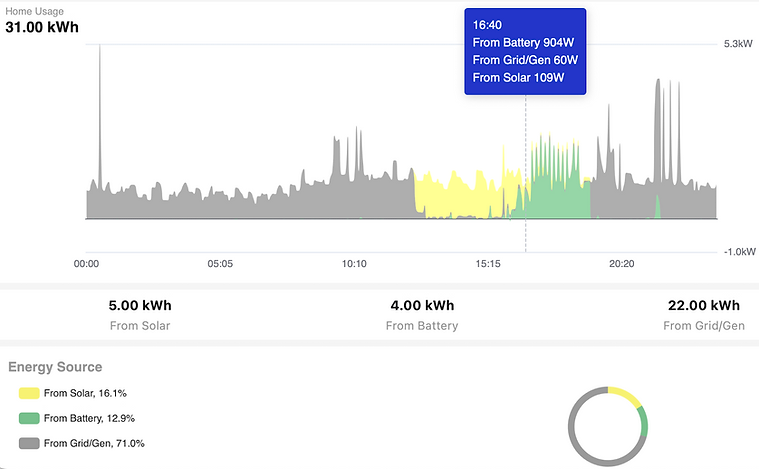

The app and web portal allow viewing data for the performance of the inverter
Power Smarter, Live Freer with MidNite Pro
Local Bluetooth Connection
Establishes a connection between the app and energy storage devices.
Data Viewing
Displays real-time and historical data from connected devices, such as energy usage, battery status, and inverter settings.
Parameter Modification
Enables users to adjust device settings, including those related to charging, discharging, and overall system configuration.

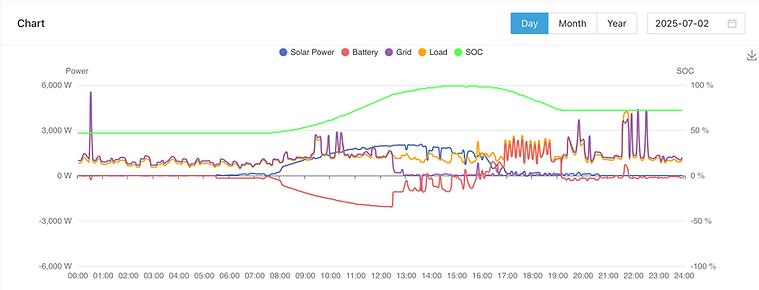

Graphical Representation
Provides charts and graphs to visualize data trends and patterns.
Offline Functionality
App can be used remotely when the inverter is on-line, or locally via bluetooth even if the inverter is not connected to the internet
Inverter Product Documents
MidNitePower Version
Service
MidNiteSolar Version
Service
I had to fix a plug on another bounce house blower, so I was curious to see if the MidNite Solar All-in-one inverter could run two 2HP blowers at the same time...and on the same leg. Can the inverter handle the surge and startup requirements? Let's find out together!
​
-Adam De Lay, Youtube
The All in one inverter by Midnite Power, also known as (The One), is a great inverter/ charger that can supply all the needs of your home or business. ​
​
